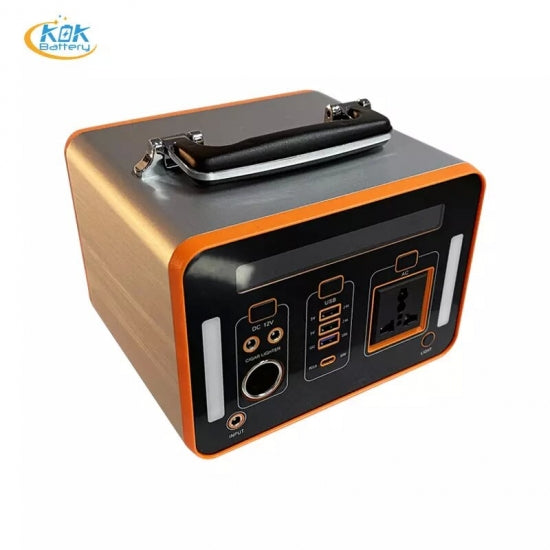

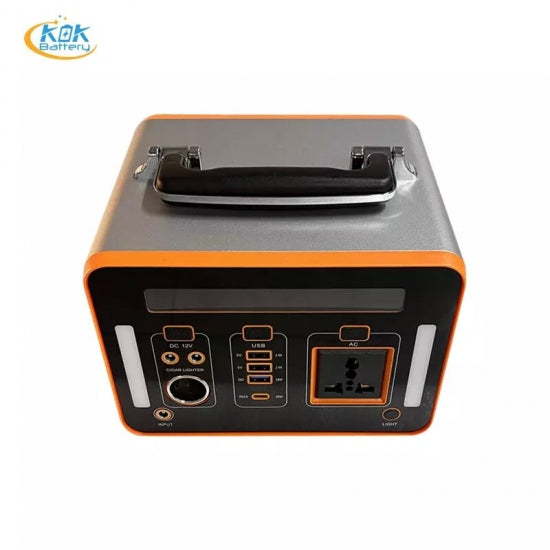

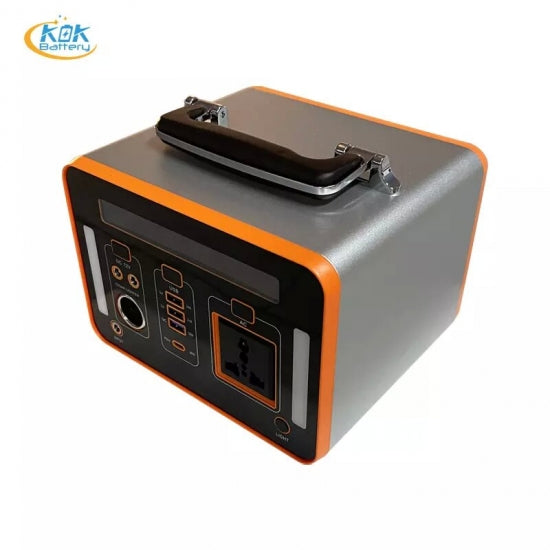

300W 500W 1000W Outdoor Camping UPS Portable Power Station

300W 500W 1000W Outdoor Camping UPS Portable Power Station

Project Parameters UA300 UA500 UA1000





Battery
 Battery Category Lithium ion batteries
Battery power 300 W 500W 1000W
Battery voltage 14.8 V 14.8 V 14.8 V
Battery safety 20.24Ah 33.8 Ah 67.5 Ah
Cycle life 800 800 800
BMS protection Overvoltage, undervoltage, high and low temperature,
three stage overcurrent, short circuit protection









AC output		 Output voltage 100-240 V( Ex-factory (based on region)
Output frequency 50-60 HZ( Manual switching)





Output power
 300W about 20 minutes 500W about 40 minutes 1000W about 20 minutes
200W approximately
65 minutes		 400W approximately
65 minutes		 800W approximately
60 minutes
100W about 85 minutes 300W about 85 minutes 500W about 100 minutes
50W about 130 minutes 200W about 130 minutes 300W about 160 minutes
100W approximately
270 minutes		 100W approximately
540 minutes
Output waveform Pure sine wave Pure sine wave Pure sine wave
Conversion efficiency 70% load :>90%


DC output

 DC5.5 port DC12V5A
Smoke lighting interface DC12V12A
Conversion efficiency 70% load :>93%

USB output
 USB1 5V2.4A
USB2 5V2.4A
USB3 QC3.0,5-12V,18W (MAX)
USB-C output TYPLE-C PD3.0,5-20V,60W (MAX)




LED lighting		 First tranche 5W (MAX)
Second tranche 10W (MAX)
Third tranche SOS
Fourth tranche Flash


   Charge		 Adapter Charge 19V5A approximately 4 h 19V5A h 6 19V5A approximately 12 h
Vehicle charging 13V8A approximately 4 h 13V8A h 6 13V8A approximately 12 h
Solar charging 20V5A h 3.5 20V5A h 6 20V5A approximately 16 h
Standby power Static current uA <100 uA <100 uA <100

Product weight
 Net 4KG KG 5.9 KG 9.9
Gross 5KG 7.5 kg 12KG

Volume of products		 Main volume 200*142*146 200*176*146 200*294*146
Packing volume 265*265 mm 210 340*295*250 mm mm 411*295*290

Use of temperature		 Charging temperature 0~40℃（32~104℉）
Discharge temperature -20~50℃（-4~122℉）
Storage temperature -20~45℃（-4~113℉）
View full details

Details

Features

Project: UA300, UA500, UA1000

Battery:

  • Battery Category: Lithium ion batteries
  • Battery Power: UA300 - 300 W, UA500 - 500 W, UA1000 - 1000 W
  • Battery Voltage: 14.8 V (for all models)
  • Battery Safety: UA300 - 20.24Ah, UA500 - 33.8 Ah, UA1000 - 67.5 Ah
  • Cycle Life: 800 cycles (for all models)
  • BMS Protection: Overvoltage, undervoltage, high and low temperature, three-stage overcurrent, short circuit protection

AC Output:

  • Output Voltage: 100-240 V (Ex-factory based on region)
  • Output Frequency: 50-60 HZ (Manual switching)
  • Output Waveform: Pure sine wave
  • Conversion Efficiency: 70% load ≥30%

DC Output:

  • DC5.5 Port: DC12V5A
  • Smoke Lighting Interface: DC12V12A
  • Conversion Efficiency: 70% load ≥30%

USB Output:

  • USB1: 5V2.4A
  • USB2: 5V2.4A
  • USB3: QC3.0,5-12V,18W (MAX)
  • USB-C Output: TYPE-C PD3.0,5-20V,60W (MAX)

LED Lighting:

  • First Tranche: 5W (MAX)
  • Second Tranche: 10W (MAX)
  • Third Tranche: SOS
  • Fourth Tranche: Flash

Standby Power:

  • Static Current: <100 uA (for all models)

Product Weight:

  • Net Weight: UA300 - 4KG, UA500 - 5.9KG, UA1000 - 9.9KG
  • Gross Weight: UA300 - 5KG, UA500 - 7.5KG, UA1000 - 12KG

Temperature:

  • Charging Temperature: 0～40°C (32～104°F)
  • Discharge Temperature: -20～50°C (-4～122°F)
  • Storage Temperature: -20～45°C (-4～113°F)

Why Choose Us?

  • Reliable Power

    Delivers reliable power for various applications, ensuring uninterrupted operation.

  • Versatile Use

    Suitable for diverse uses, from motorcycles to energy storage systems.

  • Enhanced Safety

    Can be installed in any direction without risk of leakage or damage.

  • Longer Lifespan

    Lasts 7-10 times longer than conventional lead-acid batteries.

  • Superior Function

    Provides high cranking amps and fast charging for optimal performance.

  • Advanced Protection

    Built-in Battery Management System prevents overcharging, overcurrent, overheating, and overdischarge.

  • Non-Toxicity

    Uses Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

  • Robust Durability

    Features strong cell holders and gold-plating terminals for protection against vibration, overheating, and oxidation.

1 8

FAQs

What is the lifespan of KOK POWER LiFePO4 batteries?

Our LiFePO4 batteries typically last 7-10 times longer than conventional lead-acid batteries, with up to 5000 deep cycles and 50000 ignition times.

Can LiFePO4 batteries be installed in any direction?

Yes, our LiFePO4 batteries can be installed in any direction without risk of leakage or damage.

What safety features are included in KOK POWER batteries?

Our batteries include a Battery Management System (BMS) that protects against overcharging, overcurrent, overheating, and overdischarge.

Are KOK POWER batteries environmentally friendly?

Yes, our batteries use Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

What applications are KOK POWER batteries suitable for?

Our batteries are suitable for a wide range of applications, including motorcycles, energy storage systems, outdoor activities, and more.

Do KOK POWER batteries support fast charging?

Yes, our batteries provide high discharge power and fast charging capabilities.

What is the warranty period for KOK POWER batteries?

We offer an 18-month warranty on all our batteries to ensure customer satisfaction and confidence.

How do KOK POWER batteries compare in weight and size to lead-acid batteries?

Depending on the product, our batteries can be up to 1/2 the size and 1/3 the weight of traditional lead-acid batteries, providing better performance and easier handling.

Do KOK POWER batteries require maintenance?

Our batteries are designed to be maintenance-free, provided there are no parasitic drains.

What makes KOK POWER batteries durable?

Our batteries feature strong cell holders, gold-plated copper terminals for optimal conductivity, and robust construction to protect against vibration, overheating, and oxidation.
