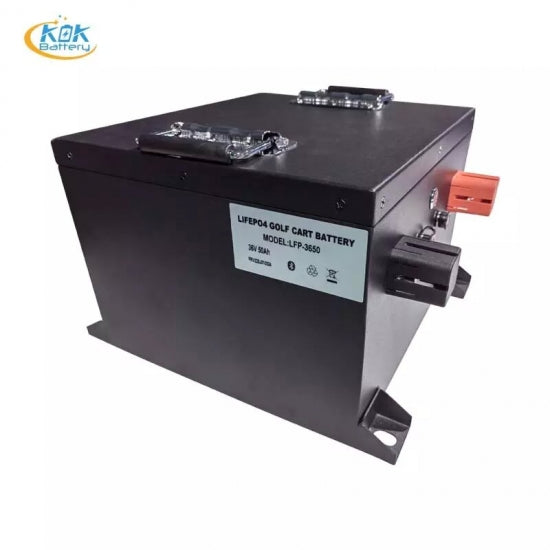

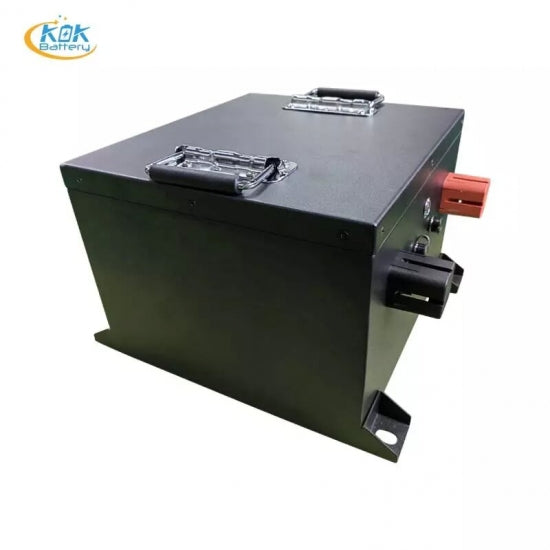

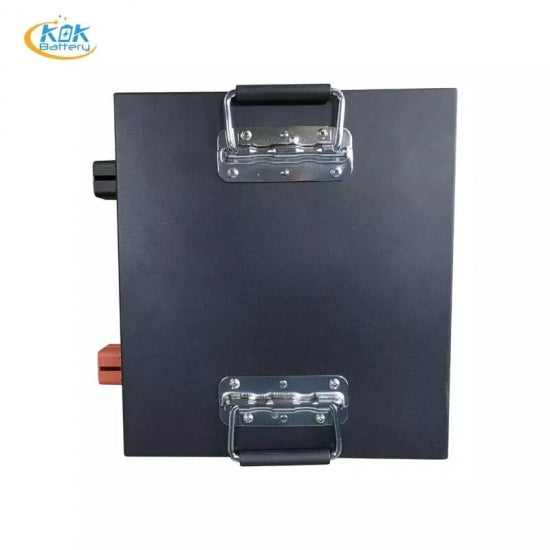

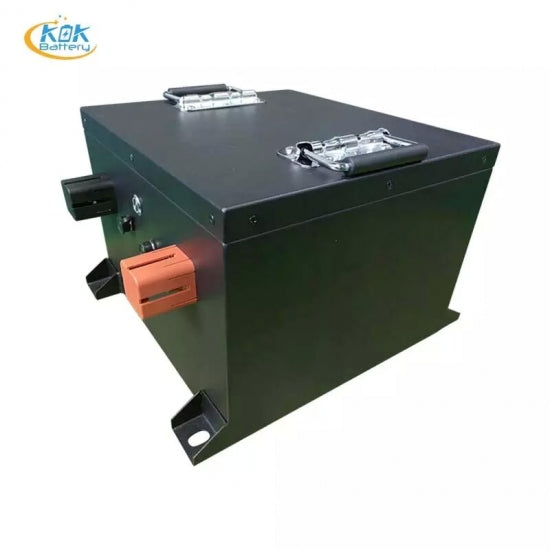

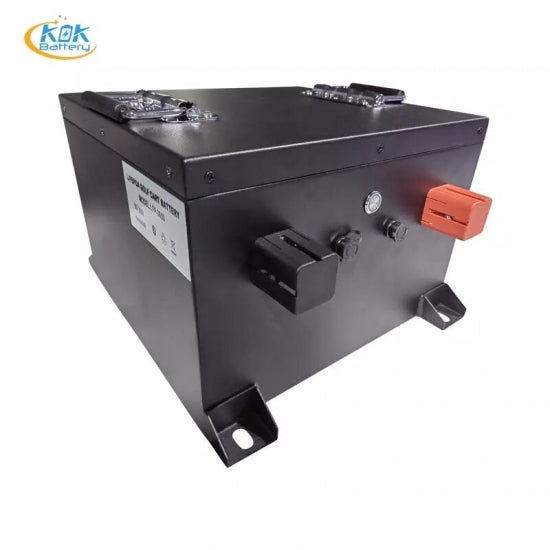

36V 48V 50Ah 100AH Golf Cart Lithium Battery Pack

36V 48V 50Ah 100AH Golf Cart Lithium Battery Pack

Item
 General Parameter Remark
Combination method
 16S1P
Rated Capacity
 Typical
 50Ah Standard discharge after Standard charge（package)
Minimum 50Ah
Factory Voltage
 51.0V-52.0V (40-60%) Mean Operation Voltage
Voltage at end of Discharge
 38-42V Discharge Cut-off Voltage
Charging Voltage 57.6-59.2V
Internal Impedance
 ≤30mΩ Internal resistance measured at AC 1KHZafter 50% SOC.
The measure must uses the new
batteries that within one week after shipment and cycles less than 5 times .
Standard charge
 Constant Current 25A
Constant Voltage see No.5;0.02CA cut-off
 Charge time: Approx 2.5 h
Standard discharge
 Constant current: 25A
end voltage see NO.4
Maximum Continuous Charge Current
 50A T≥10ºC
Maximum Continuous Discharge Current
 50A T≥10ºC
Operation Temperature Range
 Charge: 0~55℃
Discharge: -20~65℃		 60±25%R.H.Bare Cell
Storage Temperature Range Less than 12 months: -10~35℃
less than 3 months: -10~45℃
Less than 7 day: -20~65℃
 60±25%R.H. at the shipment state
Dimensions 413.5*315*201.2mm Including Bracket
Weight Approx: 28.5kg
View full details

Details

Features

  • Made of High quality Li-ion cell
  • High current charger optional
  • With advanced BMS (Battery Management System)

BMS (Battery Management System):

  • Built-in IC compatible with military standards
  • Protection against over-current, over-discharge, and over-charge
  • Short-circuit protection
  • Adverse-polarity connection protection
  • Balancing functions included

Techniques:

  • Automatic spot-welding techniques
  • Exquisite workmanship

Why Choose Us?

  • Reliable Power

    Delivers reliable power for various applications, ensuring uninterrupted operation.

  • Versatile Use

    Suitable for diverse uses, from motorcycles to energy storage systems.

  • Enhanced Safety

    Can be installed in any direction without risk of leakage or damage.

  • Longer Lifespan

    Lasts 7-10 times longer than conventional lead-acid batteries.

  • Superior Function

    Provides high cranking amps and fast charging for optimal performance.

  • Advanced Protection

    Built-in Battery Management System prevents overcharging, overcurrent, overheating, and overdischarge.

  • Non-Toxicity

    Uses Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

  • Robust Durability

    Features strong cell holders and gold-plating terminals for protection against vibration, overheating, and oxidation.

1 8

FAQs

What is the lifespan of KOK POWER LiFePO4 batteries?

Our LiFePO4 batteries typically last 7-10 times longer than conventional lead-acid batteries, with up to 5000 deep cycles and 50000 ignition times.

Can LiFePO4 batteries be installed in any direction?

Yes, our LiFePO4 batteries can be installed in any direction without risk of leakage or damage.

What safety features are included in KOK POWER batteries?

Our batteries include a Battery Management System (BMS) that protects against overcharging, overcurrent, overheating, and overdischarge.

Are KOK POWER batteries environmentally friendly?

Yes, our batteries use Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

What applications are KOK POWER batteries suitable for?

Our batteries are suitable for a wide range of applications, including motorcycles, energy storage systems, outdoor activities, and more.

Do KOK POWER batteries support fast charging?

Yes, our batteries provide high discharge power and fast charging capabilities.

What is the warranty period for KOK POWER batteries?

We offer an 18-month warranty on all our batteries to ensure customer satisfaction and confidence.

How do KOK POWER batteries compare in weight and size to lead-acid batteries?

Depending on the product, our batteries can be up to 1/2 the size and 1/3 the weight of traditional lead-acid batteries, providing better performance and easier handling.

Do KOK POWER batteries require maintenance?

Our batteries are designed to be maintenance-free, provided there are no parasitic drains.

What makes KOK POWER batteries durable?

Our batteries feature strong cell holders, gold-plated copper terminals for optimal conductivity, and robust construction to protect against vibration, overheating, and oxidation.
