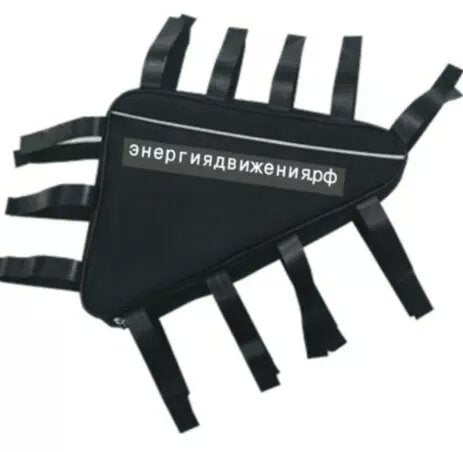

82V 17.5Ah 18650 Triangle Battery Pack Lithium Ion E-Bike Battery 48V 72V Customized with E-Bike Battery Bag

82V 17.5Ah 18650 Triangle Battery Pack Lithium Ion E-Bike Battery 48V 72V Customized with E-Bike Battery Bag

Items Specifications
Nominal Voltage 82V
Nominal Capacity 17.5Ah
Cell inside 18650 3.7V 2600mAh
Configuration 22S5P
Standard Charge Current 2A
Max. Charge Current 17A
Protected Circuit Board(BMS) BMS-Li22S2010-C96
Continue Discharge Current 20A
Peak Discharge Current 40A
Full Charged Voltage 92.4V(4.2V per cell)
Charge Cut-off Voltage 93.5V (4.25V per cell)
Discharge Cut-off Voltage 55V (2.5V per cell)
Battery Net Weight 6.12kg
Battery Dimension 340*260*390*80MM
Operating Temperature
 Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C
Storage Temperature (Recommended to store 20 ± 5°C for long term storage)
Life Cycle >800 times (80% of initial capacity at 0.2C rate, IEC Standard)
View full details

Details

Features

Product Item: KOK POWER 82V 17.5Ah 18650 Triangle Battery Pack Lithium ion Ebike Battery 48V 72V Customized with Ebike Battery Bag.

  • Widely used for many famous ebike brands
  • Multifunctional BMS with full protection
  • Bottle length adjustable for more capacity
  • Super long cycle life up to 1000 time of 100%DOD
  • Prolonged warranty of 18months
  • Easily mounted on the rear of the seat
  • Optional Smart system to show battery data via APP

Details

  • Compact size allows multiple lithium-ion batteries on an e-bike frame
  • Offers impressive range with Japanese cells for high energy density
  • Lightweight and stealthy design maintains e-bike aesthetics

Why Choose Us?

  • Reliable Power

    Delivers reliable power for various applications, ensuring uninterrupted operation.

  • Versatile Use

    Suitable for diverse uses, from motorcycles to energy storage systems.

  • Enhanced Safety

    Can be installed in any direction without risk of leakage or damage.

  • Longer Lifespan

    Lasts 7-10 times longer than conventional lead-acid batteries.

  • Superior Function

    Provides high cranking amps and fast charging for optimal performance.

  • Advanced Protection

    Built-in Battery Management System prevents overcharging, overcurrent, overheating, and overdischarge.

  • Non-Toxicity

    Uses Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

  • Robust Durability

    Features strong cell holders and gold-plating terminals for protection against vibration, overheating, and oxidation.

1 8

FAQs

What is the lifespan of KOK POWER LiFePO4 batteries?

Our LiFePO4 batteries typically last 7-10 times longer than conventional lead-acid batteries, with up to 5000 deep cycles and 50000 ignition times.

Can LiFePO4 batteries be installed in any direction?

Yes, our LiFePO4 batteries can be installed in any direction without risk of leakage or damage.

What safety features are included in KOK POWER batteries?

Our batteries include a Battery Management System (BMS) that protects against overcharging, overcurrent, overheating, and overdischarge.

Are KOK POWER batteries environmentally friendly?

Yes, our batteries use Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

What applications are KOK POWER batteries suitable for?

Our batteries are suitable for a wide range of applications, including motorcycles, energy storage systems, outdoor activities, and more.

Do KOK POWER batteries support fast charging?

Yes, our batteries provide high discharge power and fast charging capabilities.

What is the warranty period for KOK POWER batteries?

We offer an 18-month warranty on all our batteries to ensure customer satisfaction and confidence.

How do KOK POWER batteries compare in weight and size to lead-acid batteries?

Depending on the product, our batteries can be up to 1/2 the size and 1/3 the weight of traditional lead-acid batteries, providing better performance and easier handling.

Do KOK POWER batteries require maintenance?

Our batteries are designed to be maintenance-free, provided there are no parasitic drains.

What makes KOK POWER batteries durable?

Our batteries feature strong cell holders, gold-plated copper terminals for optimal conductivity, and robust construction to protect against vibration, overheating, and oxidation.
