KOKPower

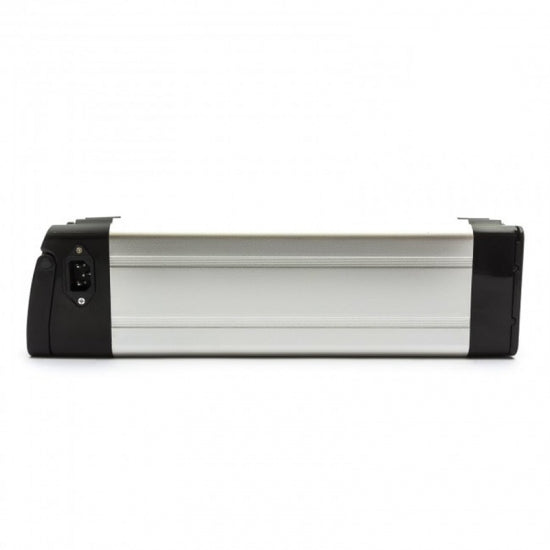

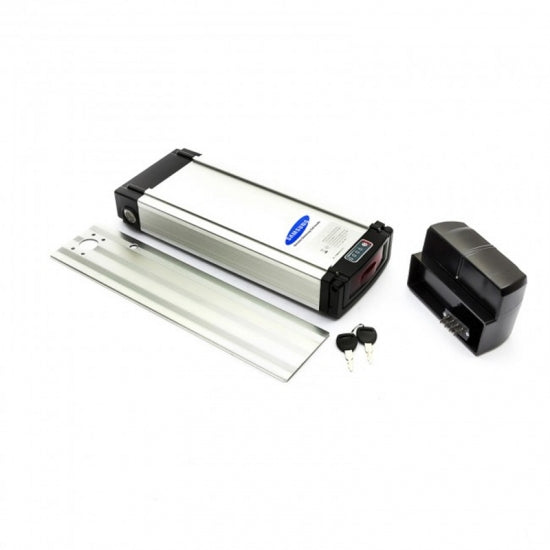

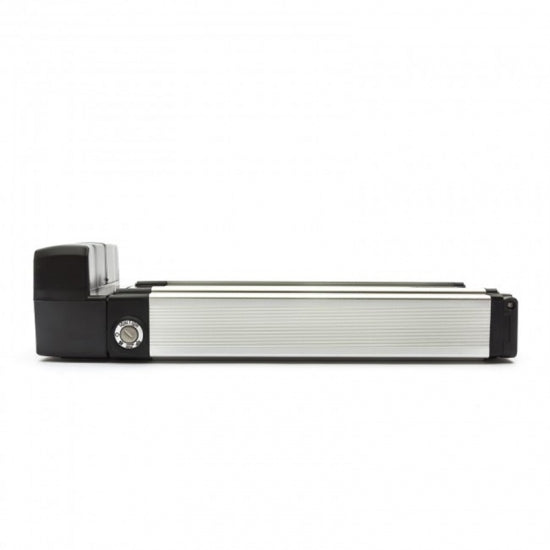

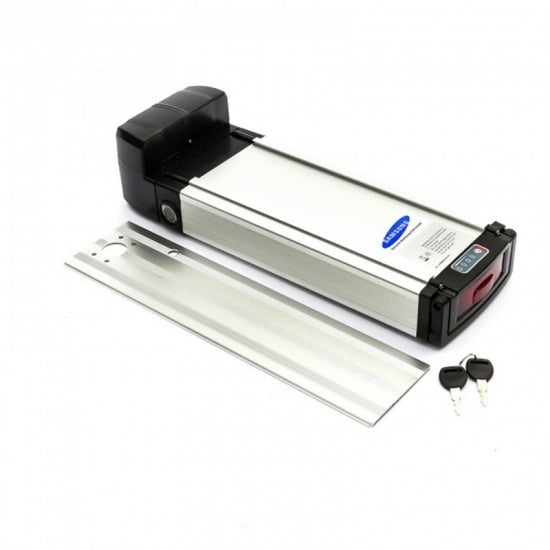

E-Bike Battery Pillow Pack Li-Ion 18650 Cells 48v 20Ah

E-Bike Battery Pillow Pack Li-Ion 18650 Cells 48v 20Ah

MAX. CELLS CONFIGURATION VOLTAGE/CAPACITY
2200mAh 2600mAh 2900mAh 3350mAh 3500mAh
52 7S7P 24V15.4Ah 24V18.2Ah 24V20.3Ah 24V23.4Ah 24V24.5Ah
10S5P 36V11Ah 36V13Ah 36V14.5Ah 36V16.7Ah 36V17.5Ah
13S4P 48V8.8Ah 48V10.4Ah 48V11.6Ah 48V13.4Ah 48V14Ah
14S3S 52V6.6Ah 52V7.8Ah 52V8.7Ah 52V10Ah 52V10.5Ah
The length of alu case can be tailored to the customer's e-bike.
View full details

Details

Features

  • Easily mounting to rear rack of e-bikes with controller box
  • Multifunctional BMS with full protection
  • Alu. case length adjustable for more capacity
  • Super long cycle life up to 1000 time of 100%DOD
  • Prolonged warranty of 18months
  • Rear light, LED fuel gauge

Details

  • Pillow Pack Li-ion 18650 Cells
  • Data readable via UART (voltage, current, temperature, cycles)
  • Bluetooth 4.0 communication via APP
  • Coulomb energy calculation, FCC update functions
  • Cycles and alarm data record function
  • Custom manufacturing available
  • Uses grade cells from Japanese Panasonic

Cells and Smart BMS
We choose brand Chinese, Samsung, LG, Panasonic(Sanyo) 18650 cells for e-bike/scooter battery pack assembly.

  • Support Bluetooth 4.0
  • Communication range covering 10m
  • Selective gauge IC to detect total voltage of the battery pack or voltage of each series
  • Real-time remote monitoring static and dynamic status of battery pack
  • Reliable Power

    Delivers reliable power for various applications, ensuring uninterrupted operation.

  • Versatile Use

    Suitable for diverse uses, from motorcycles to energy storage systems.

  • Enhanced Safety

    Can be installed in any direction without risk of leakage or damage.

  • Longer Lifespan

    Lasts 7-10 times longer than conventional lead-acid batteries.

  • Superior Function

    Provides high cranking amps and fast charging for optimal performance.

  • Advanced Protection

    Built-in Battery Management System prevents overcharging, overcurrent, overheating, and overdischarge.

  • Non-Toxicity

    Uses Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

  • Robust Durability

    Features strong cell holders and gold-plating terminals for protection against vibration, overheating, and oxidation.

1 of 8

FAQs

What is the lifespan of KOK POWER LiFePO4 batteries?

Our LiFePO4 batteries typically last 7-10 times longer than conventional lead-acid batteries, with up to 5000 deep cycles and 50000 ignition times.

Can LiFePO4 batteries be installed in any direction?

Yes, our LiFePO4 batteries can be installed in any direction without risk of leakage or damage.

What safety features are included in KOK POWER batteries?

Our batteries include a Battery Management System (BMS) that protects against overcharging, overcurrent, overheating, and overdischarge.

Are KOK POWER batteries environmentally friendly?

Yes, our batteries use Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

What applications are KOK POWER batteries suitable for?

Our batteries are suitable for a wide range of applications, including motorcycles, energy storage systems, outdoor activities, and more.

Do KOK POWER batteries support fast charging?

Yes, our batteries provide high discharge power and fast charging capabilities.

What is the warranty period for KOK POWER batteries?

We offer an 18-month warranty on all our batteries to ensure customer satisfaction and confidence.

How do KOK POWER batteries compare in weight and size to lead-acid batteries?

Depending on the product, our batteries can be up to 1/2 the size and 1/3 the weight of traditional lead-acid batteries, providing better performance and easier handling.

Do KOK POWER batteries require maintenance?

Our batteries are designed to be maintenance-free, provided there are no parasitic drains.

What makes KOK POWER batteries durable?

Our batteries feature strong cell holders, gold-plated copper terminals for optimal conductivity, and robust construction to protect against vibration, overheating, and oxidation.
