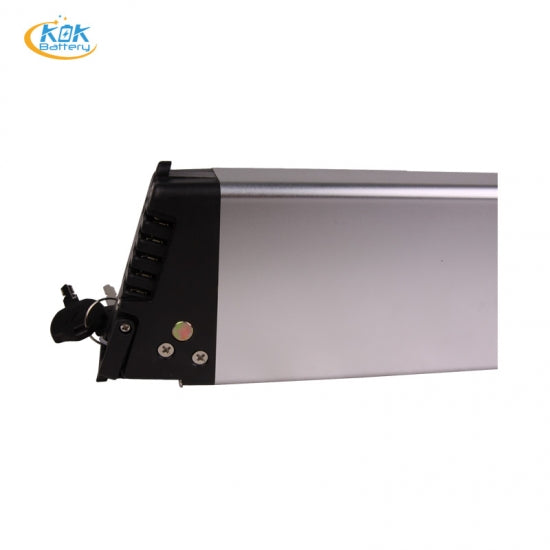

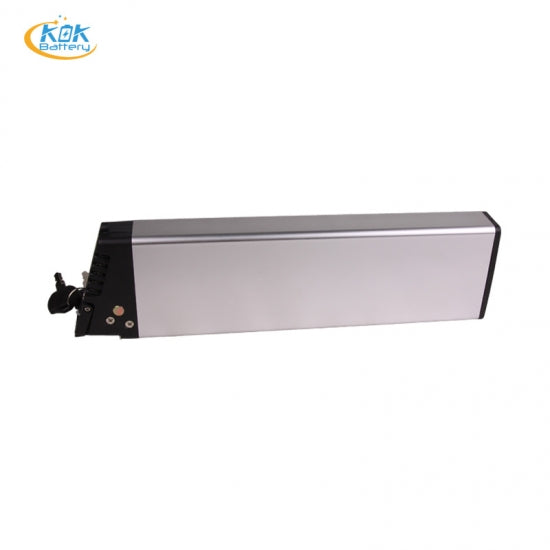

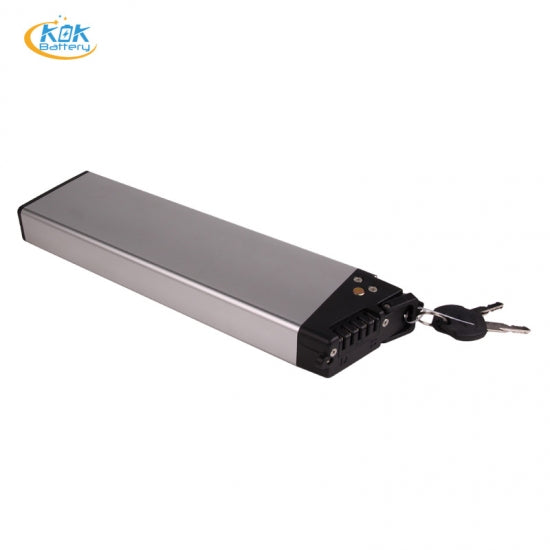

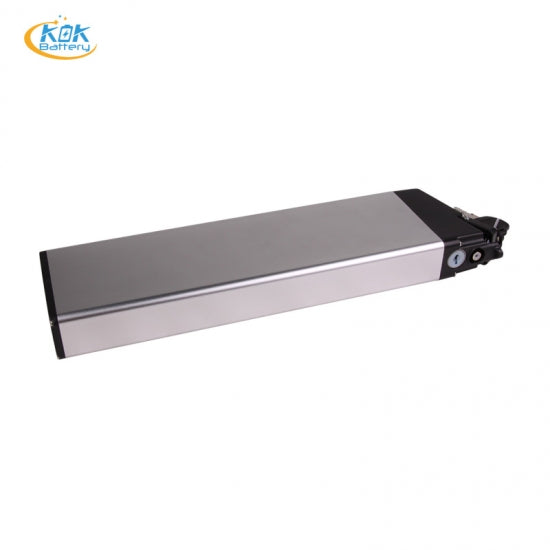

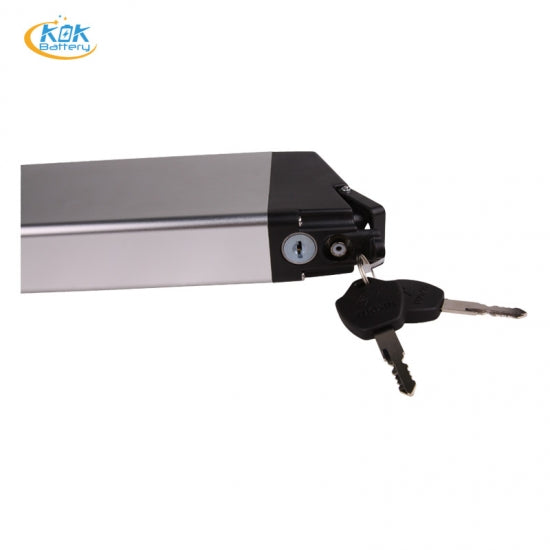

Panasonic Lithium Battery 36V 14Ah 14.5ah Lithium Ion Battery Pack 500w 1000w Foldable E-Bike Battery

Panasonic Lithium Battery 36V 14Ah 14.5ah Lithium Ion Battery Pack 500w 1000w Foldable E-Bike Battery

Items Specifications
Nominal Voltage 37V (3.7V any single cell)
Nominal Capacity 14Ah
Cell inside Panasonic 3300mAh
Configuration 10S4P
Standard Charge Current 0.2C
Max. Charge Current 1C
Protected Circuit Board(BMS) BMS-Li10S1505-BMC
Continue Discharge Current 15A
Peak Discharge Current 30A
Full Charged Voltage 42V (4.2V per cell)
Charge Cut-off Voltage 42.5V (4.25V per cell)
Discharge Cut-off Voltage 25V (2.5V per cell)
Battery Net Weight 2.5kg
Battery Dimension 365*90*35mm (Alum tube 305mm)
Connector Input: DC connector
Output
Operating Temperature Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C
Storage Temperature (Recommended to store 20 ± 5°C for long term storage)
Life Cycle >800 times (80% of initial capacity at 0.2C rate, IEC Standard)
View full details

Details

Features

  • PCM design for overcharge, overdischarge, and short circuit protection
  • Battery type: High-quality Panasonic Lithium-ion cells
  • Configuration: 36V 14Ah
  • Long cycle life: Up to 1000 cycles
  • Safety and high performance
  • Reliable Power

    Delivers reliable power for various applications, ensuring uninterrupted operation.

  • Versatile Use

    Suitable for diverse uses, from motorcycles to energy storage systems.

  • Enhanced Safety

    Can be installed in any direction without risk of leakage or damage.

  • Longer Lifespan

    Lasts 7-10 times longer than conventional lead-acid batteries.

  • Superior Function

    Provides high cranking amps and fast charging for optimal performance.

  • Advanced Protection

    Built-in Battery Management System prevents overcharging, overcurrent, overheating, and overdischarge.

  • Non-Toxicity

    Uses Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

  • Robust Durability

    Features strong cell holders and gold-plating terminals for protection against vibration, overheating, and oxidation.

1 of 8

FAQs

What is the lifespan of KOK POWER LiFePO4 batteries?

Our LiFePO4 batteries typically last 7-10 times longer than conventional lead-acid batteries, with up to 5000 deep cycles and 50000 ignition times.

Can LiFePO4 batteries be installed in any direction?

Yes, our LiFePO4 batteries can be installed in any direction without risk of leakage or damage.

What safety features are included in KOK POWER batteries?

Our batteries include a Battery Management System (BMS) that protects against overcharging, overcurrent, overheating, and overdischarge.

Are KOK POWER batteries environmentally friendly?

Yes, our batteries use Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

What applications are KOK POWER batteries suitable for?

Our batteries are suitable for a wide range of applications, including motorcycles, energy storage systems, outdoor activities, and more.

Do KOK POWER batteries support fast charging?

Yes, our batteries provide high discharge power and fast charging capabilities.

What is the warranty period for KOK POWER batteries?

We offer an 18-month warranty on all our batteries to ensure customer satisfaction and confidence.

How do KOK POWER batteries compare in weight and size to lead-acid batteries?

Depending on the product, our batteries can be up to 1/2 the size and 1/3 the weight of traditional lead-acid batteries, providing better performance and easier handling.

Do KOK POWER batteries require maintenance?

Our batteries are designed to be maintenance-free, provided there are no parasitic drains.

What makes KOK POWER batteries durable?

Our batteries feature strong cell holders, gold-plated copper terminals for optimal conductivity, and robust construction to protect against vibration, overheating, and oxidation.
