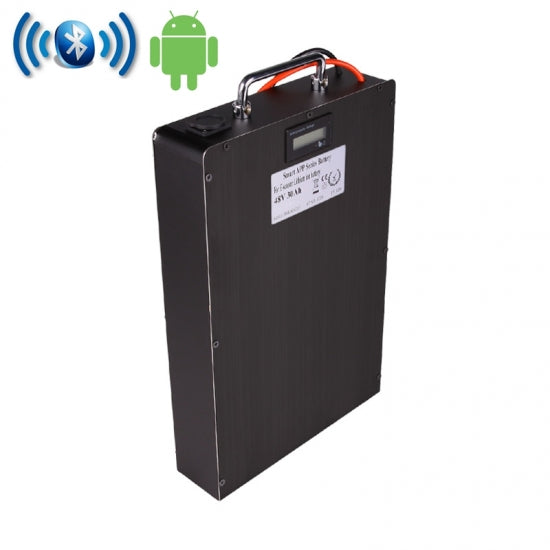

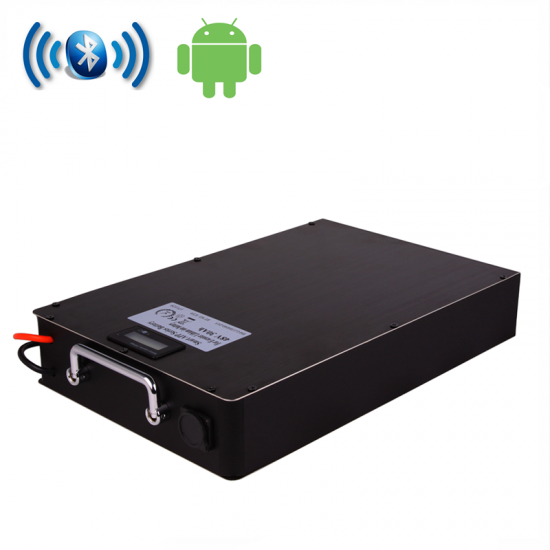

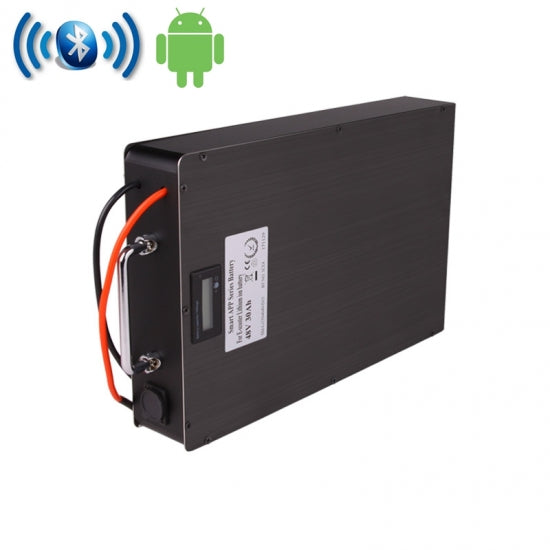

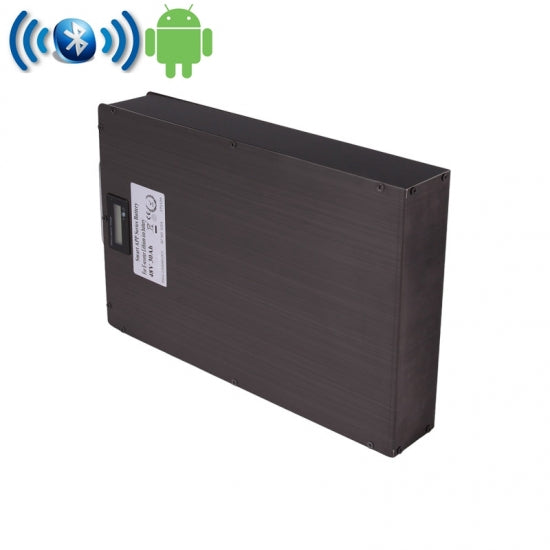

Smart 48v Lithium Lipo E-Bike Scooter Battery 30Ah High Performance Battery Pack

Smart 48v Lithium Lipo E-Bike Scooter Battery 30Ah High Performance Battery Pack

Items Specifications
Nominal Voltage 54.6V
Nominal Capacity 30Ah
Cell Inside 18650 3.7V 2500mAh
Configuration 13S12P
Standard Charge Current 6A (0.2C)
Max. Charge Current 30A (1C)
Battery management System (BMS) BMS-13S4010-D15 (160*63*12mm)
Continuous Discharge Current 40A
Peak Discharge Current 80A
Full Charged Voltage 54.6V (4.2V per cell)
Charge Cut-off Voltage 55.25V (4.25V any single cell)
Discharge Cut-off Voltage 32.5V (2.5V per cell)
Net Weight 9.96kg
Dimensions 250*65*380mm
Case Special design case (Titanium steel + acrylic) with metal handle
Operating Temperature Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C
SOC With Voltage/Capacity display
Output/input Cannon XLR connector for charging, One pair of wires for charging and discharging
Storage Temperature (Recommended to store 20 ± 5°C for long term storage)
Cycle Life 1000 times (80% of initial capacity at 0.2C rate, IEC Standard)
View full details

Details

Features

  • World's first 48V 30Ah smart electric bike scooter battery
  • Monitors cell status with Bluetooth BMS
  • Supports SMBus and I2C communication protocols
  • Built from 18650 cells in a honeycomb structure with spot welding

Other Features: PCM 40Amps Design

  1. This pack comes with a very advanced BMS (battery management system) with Texas Instruments IC inside which protects the pack from damage during charge and discharge. This BMS also has temperature protection to keep the pack from getting too hot.
  2. It is a high power BMS which will allow the pack to put out 40amps continuous (1920 watts) and 80 amp bursts (3840 watts) although running this much power will drastically reduce packs life expectancy. so we recommend to not run your battery too hard if you expect it to last over a couple hundred charges.
  3. Smart battery features Bluetooth for mobile app connectivity.
  4. App displays battery pack voltage, single cell voltage, current, state of charge (SOC), charge/discharge state, cycles, temperature, remaining capacity (RMC), design capacity (DCAP), full charge capacity (FCC), average time to empty (ATTE), average time to full (ATTF), and serial number (SN).

Why Choose Us?

  • Reliable Power

    Delivers reliable power for various applications, ensuring uninterrupted operation.

  • Versatile Use

    Suitable for diverse uses, from motorcycles to energy storage systems.

  • Enhanced Safety

    Can be installed in any direction without risk of leakage or damage.

  • Longer Lifespan

    Lasts 7-10 times longer than conventional lead-acid batteries.

  • Superior Function

    Provides high cranking amps and fast charging for optimal performance.

  • Advanced Protection

    Built-in Battery Management System prevents overcharging, overcurrent, overheating, and overdischarge.

  • Non-Toxicity

    Uses Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

  • Robust Durability

    Features strong cell holders and gold-plating terminals for protection against vibration, overheating, and oxidation.

1 8

FAQs

What is the lifespan of KOK POWER LiFePO4 batteries?

Our LiFePO4 batteries typically last 7-10 times longer than conventional lead-acid batteries, with up to 5000 deep cycles and 50000 ignition times.

Can LiFePO4 batteries be installed in any direction?

Yes, our LiFePO4 batteries can be installed in any direction without risk of leakage or damage.

What safety features are included in KOK POWER batteries?

Our batteries include a Battery Management System (BMS) that protects against overcharging, overcurrent, overheating, and overdischarge.

Are KOK POWER batteries environmentally friendly?

Yes, our batteries use Nano LiFePO4 technology, which is non-toxic and environmentally friendly.

What applications are KOK POWER batteries suitable for?

Our batteries are suitable for a wide range of applications, including motorcycles, energy storage systems, outdoor activities, and more.

Do KOK POWER batteries support fast charging?

Yes, our batteries provide high discharge power and fast charging capabilities.

What is the warranty period for KOK POWER batteries?

We offer an 18-month warranty on all our batteries to ensure customer satisfaction and confidence.

How do KOK POWER batteries compare in weight and size to lead-acid batteries?

Depending on the product, our batteries can be up to 1/2 the size and 1/3 the weight of traditional lead-acid batteries, providing better performance and easier handling.

Do KOK POWER batteries require maintenance?

Our batteries are designed to be maintenance-free, provided there are no parasitic drains.

What makes KOK POWER batteries durable?

Our batteries feature strong cell holders, gold-plated copper terminals for optimal conductivity, and robust construction to protect against vibration, overheating, and oxidation.
